Campervan Electrical Sizing: Physical Formulas, Derating & Ampacity Standards
Designing an off-grid electrical architecture for a campervan requires moving beyond manufacturer marketing claims and applying deterministic thermodynamics, Ohm's Law, and American Boat & Yacht Council (ABYC E-11) safety margins.
1. Daily Energy Consumption Formulation
An off-grid electrical audit begins by calculating cumulative daily energy consumption in watt-hours (Wh) rather than amp-hours (Ah). Because system voltage fluctuates dynamically across battery chemistry states of charge (from 13.6V resting down to 12.0V under heavy inductive loads), energy in watt-hours represents the invariant physical work required:
E_daily (Wh) = ∑ [ P_i (Watts) × t_i (Hours/Day) ] For example, a high-efficiency 12V compressor refrigerator drawing 45W at a 40% duty cycle in 75°F ambient conditions consumes:
E_fridge = 45W × (24h × 0.40) = 45W × 9.6h = 432 Wh/day Converting total daily watt-hours to amp-hours at a nominal 12.8V LiFePO4 resting voltage yields:
C_Ah = E_daily / 12.8V 2. LiFePO4 Usable Depth of Discharge vs. Lead-Acid
Lithium Iron Phosphate (LiFePO4) chemistry has made legacy AGM and gel lead-acid cells obsolete in overland applications. While lead-acid batteries suffer rapid sulfation and catastrophic capacity degradation when discharged below 50% Depth of Discharge (DoD), automotive-grade prismatic LiFePO4 cells safely deliver 80% to 100% DoD across 3,500 to 5,000 cycles.
| Battery Chemistry | Usable DoD | Cycle Life (80% SOH) | Weight / 100Ah Usable | Peukert Exponent |
|---|---|---|---|---|
| LiFePO4 (Grade-A Prismatic) | 85% – 95% | 3,500 – 5,000 | ~26 lbs (11.8 kg) | 1.02 – 1.05 |
| Absorbent Glass Mat (AGM) | 50% | 400 – 600 | ~130 lbs (59.0 kg) | 1.15 – 1.25 |
| Flooded Deep-Cycle Lead | 50% | 300 – 500 | ~120 lbs (54.4 kg) | 1.25 – 1.35 |
Furthermore, Peukert's Law dictates that pulling high continuous currents (such as 150A into a 1,800W induction cooktop) artificially shrinks the effective capacity of lead-acid batteries by up to 35%. LiFePO4 exhibits a virtually flat voltage discharge curve with a Peukert exponent near 1.02, delivering full rated ampere-hours even under maximum inverter draw.
3. Solar Harvesting Realities: Derating Factors & MPPT Efficiency

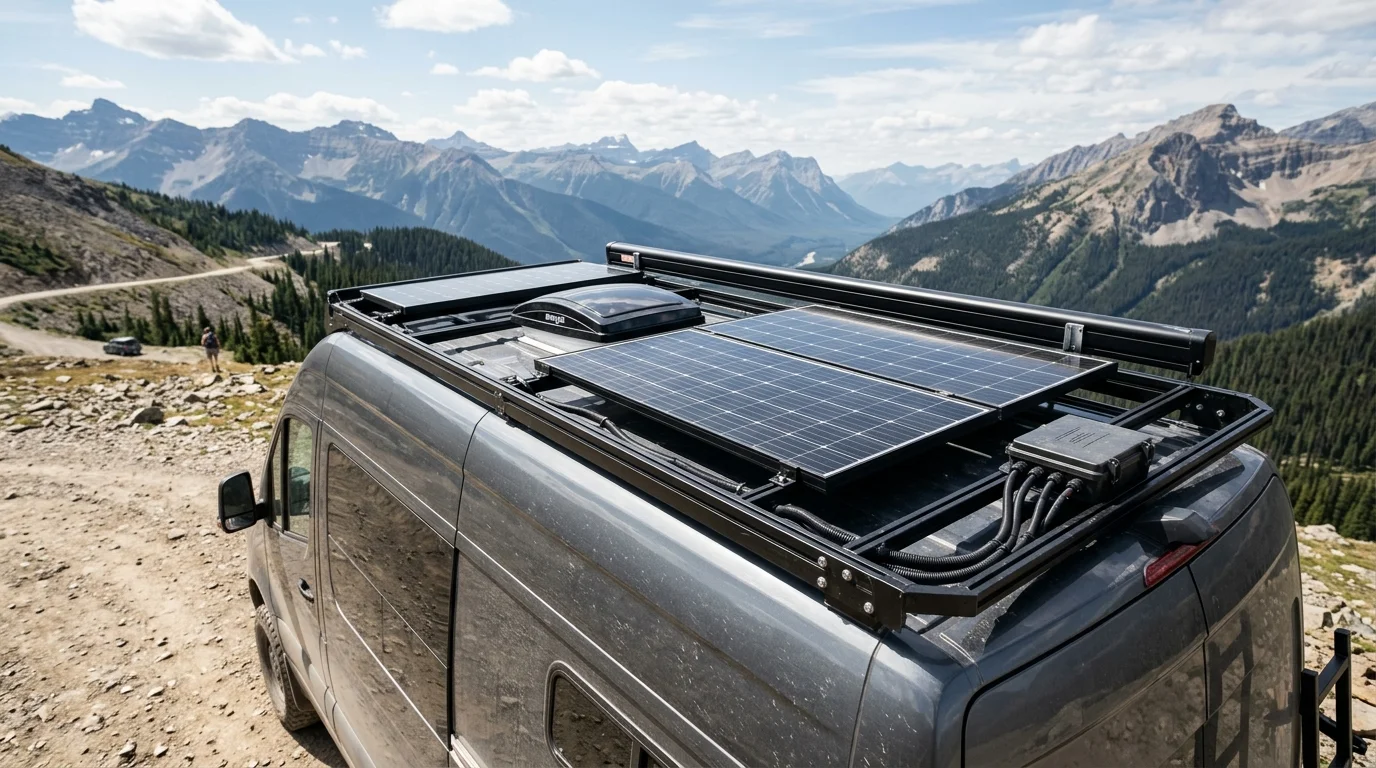

Rooftop solar panels on mobile vans rarely achieve their Standard Test Condition (STC) flash-test ratings (1,000 W/m² solar irradiance, 25°C cell temperature, AM 1.5 spectrum). In practical campervan installations, real-world solar yield is governed by three unavoidable physical derating factors:
- Thermal Coefficient Loss: Monocrystalline silicon panels lose approximately 0.35% to 0.40% efficiency for every 1°C increase in cell temperature above 25°C. In summer, dark van roof panels routinely reach 65°C (149°F), resulting in a direct 14% to 16% power reduction.
- Horizontal Flat-Mount Cosine Loss: Because van roof panels are mounted horizontally without mechanical dual-axis tracking, solar irradiance is attenuated by the cosine of the sun's zenith angle (θ). At mid-latitudes (35°N to 48°N), flat panels lose 18% to 28% peak irradiance compared to tilted arrays.
- Dust, Soiling & Shading: Highway diesel soot, pollen, and roof rack shadows further reduce output by 5% to 10%.
Combining these factors with an advanced Maximum Power Point Tracking (MPPT) controller conversion efficiency of 97%, the realistic system derating factor (η_system) is 0.70 to 0.72. Thus, a nominal 400W rooftop array typically generates 280W peak, producing approximately 1,120 Wh to 1,400 Wh over a standard 4 to 5 peak sun-hour day.
4. ABYC E-11 Wire Sizing & 3% Critical Voltage Drop Standards
Undersized 12V DC conductors represent the primary fire hazard in amateur van conversions. Because power loss in electrical conductors scales quadratically with current (P_loss = I² × R), low-voltage 12V systems require massive copper cross-sectional areas compared to 120V household wiring.
The American Boat and Yacht Council (ABYC Standard E-11) and NEC Article 551 mandate that critical conductors—including battery main feeds, inverter cables, and navigation equipment—must not exceed a 3% maximum voltage drop. At 12.8V, a 3% drop equals exactly 0.384V.
Circular Mils (CM) = [ K × I (Amperes) × L (Total Circuit Feet) ] / V_drop (Volts) Where K is the resistivity constant of tinned stranded copper (10.75 Ω·cmil/ft at 25°C), I is maximum continuous current, and L is the total round-trip circuit length (positive feed plus negative ground return).
| Conductor Gauge (AWG) | Resistance (Ω / 1,000 ft) | Engine Compartment Ampacity (105°C) | Max Round-Trip Run (10A @ 3% Drop) | Max Round-Trip Run (150A @ 3% Drop) |
|---|---|---|---|---|
| 14 AWG | 3.07 Ω | 21 A | 12.5 ft (3.8 m) | Not permissible |
| 10 AWG | 1.21 Ω | 51 A | 31.7 ft (9.6 m) | Not permissible |
| 6 AWG | 0.48 Ω | 85 A | 80.0 ft (24.4 m) | 5.3 ft (1.6 m) |
| 2 AWG | 0.19 Ω | 178 A | 202 ft (61.5 m) | 13.5 ft (4.1 m) |
| 2/0 AWG | 0.098 Ω | 242 A | 392 ft (119 m) | 26.1 ft (7.9 m) |
| 4/0 AWG | 0.062 Ω | 314 A | 619 ft (188 m) | 41.3 ft (12.6 m) |
For a 2,000W inverter drawing 166A at full load over a 10-foot round-trip run, 2/0 AWG fine-stranded marine-grade tinned copper cable is mandatory to avoid thermal runaway and premature low-voltage inverter shutdown. Always install a Class-T or MRBF overcurrent fuse rated for the conductor's ampacity within 7 inches of the battery terminal post.
