Compare standing clearance, cargo floor length, wall width between wheel wells, and real-world converted highway fuel economy across Ford Transit, Ram ProMaster, Mercedes Sprinter, Chevy Express, and Toyota Sienna.
Select a commercial van chassis below to visualize the cargo floorplan dimensions and inspect whether a standard 75" Queen/Full mattress fits East-West (transverse) or requires North-South orientation.
Because the ProMaster features front-wheel-drive architecture with nearly vertical side walls, a standard 75" Full or Queen mattress fits horizontally across the back. Sleepers up to 6'2" can stretch out completely without hitting metal body ribs or requiring aftermarket flares.
Choosing a vehicle chassis for an off-grid campervan conversion determines every downstream engineering constraint—from floor plan layout and East-West bed feasibility to long-term fuel expenditure and remote serviceability.

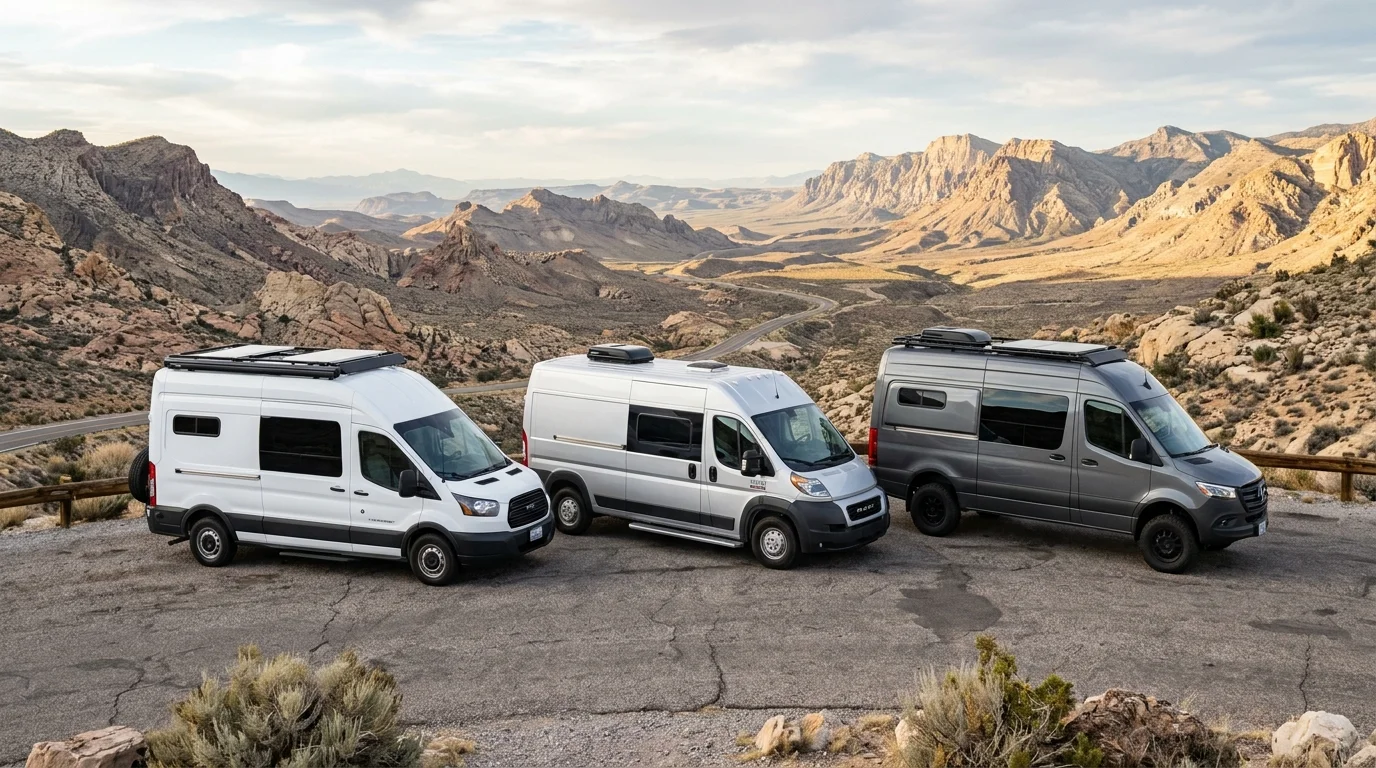

In North American van life, the three major full-size platforms (Ford Transit, Ram ProMaster, and Mercedes-Benz Sprinter) represent three distinctly different engineering philosophies:
| Platform Metric | Ford Transit (High Roof) | Ram ProMaster (High Roof) | Mercedes Sprinter (High Roof) |
|---|---|---|---|
| Drive Configuration | RWD / Intelligent AWD | Front-Wheel Drive (FWD) | RWD / Electronically Managed AWD |
| Interior Standing Height | 81.5 in (207 cm) (Tallest) | 76.0 in (193 cm) | 79.1 in (201 cm) |
| Wall-to-Wall Width | 69.8 in (177 cm) | 73.0 in (185 cm) (Squarest) | 70.1 in (178 cm) |
| Width Between Wheel Arches | 54.8 in (139 cm) | 56.0 in (142 cm) | 53.1 in (135 cm) |
| Cargo Floor Load Height | 28.2 in (71.6 cm) | 21.0 in (53.3 cm) (Lowest) | 27.4 in (69.6 cm) |
| Powertrain Options | 3.5L EcoBoost Twin-Turbo V6 | 3.6L Pentastar V6 / 9-Speed | 2.0L 4-Cyl Turbodiesel HO |
The Bed Orientation Rule: The Ram ProMaster features near-vertical side walls and a 73.0-inch internal width, allowing adults up to 6'0" (72 inches) to sleep East-to-West across the vehicle width on a standard queen mattress. In contrast, the Ford Transit and Mercedes Sprinter taper inward near the roofline, requiring fiberglass side flares (pods) or a North-to-South bed orientation that consumes an additional 18 to 24 inches of longitudinal cabin living space.
Prospective builders often budget fuel expenses using official unladen EPA ratings (e.g. 15-18 MPG for gasoline cargo vans). However, adding 1,500 to 2,500 lbs of interior build weight (hardwood, water tanks, battery banks), along with rooftop solar arrays, ventilation fans, and side awnings, drastically alters vehicle aerodynamics.
Aerodynamic drag force F_d scales quadratically with velocity and directly with frontal area:
F_drag = 0.5 × ρ × v² × C_d × A A high-roof van presents a massive frontal area (A ≈ 45 sq ft) with a blunt drag coefficient (C_d ≈ 0.36 to 0.42). Adding roof solar panels mounted 3 inches above the roofline disrupts boundary-layer laminar airflow, adding approximately 8% to 12% to effective highway drag at 70 mph.
Fleet cargo vans are frequently subjected to severe stop-and-go driving cycles, rapid acceleration under heavy loads, and delayed fluid service. Prior to committing thousands of dollars to a vehicle conversion, perform these critical mechanical checks:
Verified automotive answers on standing headroom, bed layouts, converted fuel economy, and chassis reliability.
Yes, the Ford Transit High Roof offers up to 81.5 inches (6'9.5") of internal bare metal standing clearance. Even after installing 1.5 inches of subfloor insulation and ceiling tongue-and-groove paneling, the finished interior ceiling height remains approximately 78.5 to 79.5 inches, easily accommodating adults up to 6'6" tall.
The Ram ProMaster is the widest North American cargo van, measuring 73.0 inches (6'1") between the side wall structural ribs. Because its side walls rise almost vertically, adults up to 6'0" tall can sleep sideways on a standard full or queen mattress without having to purchase expensive fiberglass side window pods (flares).
After adding 1,500 to 2,500 lbs of conversion weight (batteries, water, cabinets) and aerodynamic roof drag (solar panels, MaxxAir fans), real-world highway fuel economy drops: Ford Transit 3.5L EcoBoost averages 12.5–14.2 MPG; Ram ProMaster 3.6L V6 averages 13.5–15.5 MPG; Mercedes Sprinter 2.0L Diesel averages 17.5–19.8 MPG; and the hybrid Toyota Sienna micro-camper averages 26.0–29.5 MPG.
Front-Wheel Drive puts 65% of empty vehicle curb weight directly over the front steering and traction tires, providing excellent traction in light snow and paved highway ice compared to empty RWD vans. However, on steep loose-gravel BLM switchbacks or off-camber mud, FWD can suffer from front wheel spin, especially once a heavy campervan build shifts weight toward the rear axle.
Yes, hybrid minivans like the Toyota Sienna provide an ultra-reliable stealth platform with unmatched 26–30 converted MPG and AWD capability. While interior height (47–49 inches) necessitates a sitting-only floor plan with a low slide-out bed and exterior tailgate galley, the hybrid battery allows running climate control overnight without idling an engine.
